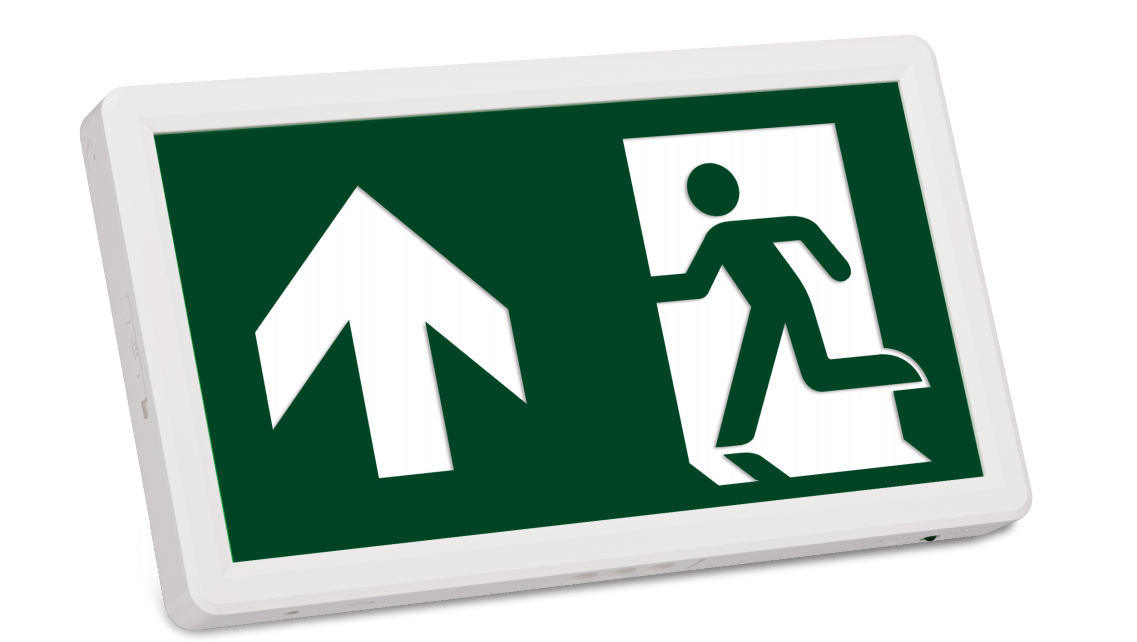

The Luxlite LUX-EB-3HEM is a high-performance LED emergency exit sign designed for reliable illumination and easy installation.
Featuring a long-life LiFePO₄ lithium battery and multiple legend options, this fitting ensures clear direction and dependable operation in the event of a power failure.
| Model No. | LUX-EB-3HEM |
|---|---|
| Input Voltage | 220–240V AC |
| Frequency | 50/60Hz |
| Input Power | 3.5W Max |
| Emergency Power | 1W |
| Battery Type | LiFePO₄ 3.2V / 1.5Ah |
| Charge Time | 24 hours |
| Emergency Duration | ≥3 hours |
| Viewing Distance | 30 metres |
| Correlated Colour Temperature (CCT) | 6500K |
| Colour Rendering Index (CRI) | ≥80 |
| Power Factor | ≥0.35 |
| Operating Temperature | 0°C to +45°C |
| Construction Material | Polycarbonate |
| Mounting | Wall mount |
| IP Rating | IP20 (Indoor use) |
| Dimensions (W × H × D) | 300 × 185 × 35 mm |
| Weight | Approx. 0.63 kg per unit |
| Warranty | 3 years |
Ideal for use in commercial, industrial, and public buildings such as offices, schools, hospitals, and retail environments.
Provides clear, reliable exit guidance during power failures or emergencies.
Fully compliant with CE, RoHS, and UKCA standards.
Designed in accordance with EN60598-2-22 for emergency lighting luminaires.
